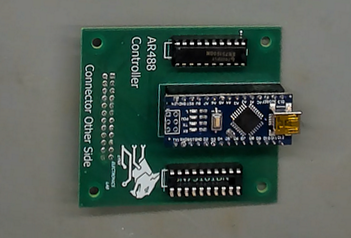

AR488 Controller Kit

Kit to build AR488 (GPIB / HPIB) Controller as seen in Youtube video here :

https://youtu.be/OiqZJIDCYoI

See Video above for build directions.

You will receive the following in your Kit :

1 - AR488 Controller Kit

1 - AR488 Interface Kit

Each Controller kit comes with one Controller Kit and one Interface kit as you need at least one to connect to a device. The Included Microcontroller is pre programmed. You will need additional Interface kits (see separate item in the store) for each additional piece of equipment you plan to connect to with the controller. You will need a 24 pin ribbon cables of the correct length needed to connect to your interface PCB's on your equipment.  See bottom of page for link to example of cable on amazon.

I provide STL files to 3d print a simple case for the controller as seen in this video :

https://youtu.be/DjhX949naao

Files can be downloaded at :

https://www.dropbox.com/scl/fo/lpvqwgh3tsk4pfj1s65gz/ACoGEctT7W_bH7nRBEsx_tY?rlkey=7sxll60wgjdw4fz0wnbnsxcn6&st=p7dvzx59&dl=0

Link to amazon for cable example :

https://www.amazon.com/uxcell-Connector-Ribbon-Female-Length/dp/B07FLRW1ZL/ref=sr_1_2?crid=1BUVX9H3YPQP6&dib=eyJ2IjoiMSJ9.Pdugeem9XFpO39IVeTs5aPNfZQucMdrqVq2XZQChWaNWQlxxDQV1OpbKAdfGbC1FsZlIN1qOAxqGGCJSqQbV0DkhCWDCEFF6YIv8dYSbxGiqY5EJwWkXkaTZHd4aKBtLIyf5Gbd6RDXbiOTRKRzw2QJX8t_pZlOLGgbKyoa1BIKn2O2mo_3ZyZLDlBJmxEmlBdTjRl8hyt8fB9CxZuLV26wXLheBiYe7yKoTp1P7BoY.c8DtJqpBVTMDszaKjjHelv24AlannJu0O_YLU5IJ9-I&dib_tag=se&keywords=jtag%2Bcable%2B24%2Bpin&qid=1753714329&sprefix=jtag%2Bcable%2B24%2Bpin%2Caps%2C132&sr=8-2&th=1
